Observability Stack Deployment

Guide for deploying and configuring the observability stack (OpenTelemetry, Prometheus, Grafana) for monitoring the SuperApp platform.

Overview

The observability stack provides:

  • OpenTelemetry Collector - Receives and processes telemetry data
  • Prometheus - Time-series metrics storage and querying
  • Grafana - Visualization and dashboards

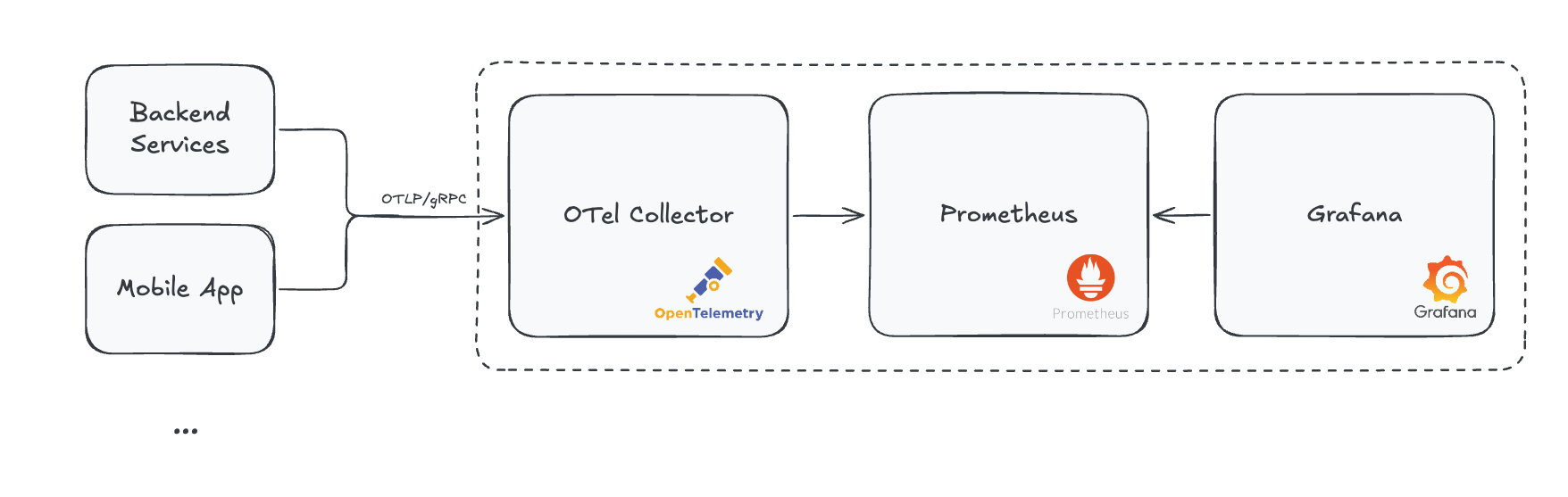

Observability Architecture

Quick Start (Development)

Using Docker Compose

cd observability
docker compose up -d

Access Points:

  • Prometheus: http://localhost:9090
  • Grafana: http://localhost:3000 (admin/admin)
  • OpenTelemetry Collector: http://localhost:4318 (OTLP HTTP)

Production Deployment

Prerequisites

  • Docker 20.10+ or Kubernetes cluster
  • Persistent storage for metrics data
  • Network access between services

Deployment Options

Option 1: Docker Compose (Small to Medium Scale)

Use the provided docker-compose.yml in the observability/ directory:

cd observability
docker compose up -d

For production, customize:

  • Update Grafana admin password in docker-compose.yml
  • Configure Prometheus retention period
  • Set up persistent volumes for data
  • Configure alerting rules in prometheus/alerts/

Option 2: Kubernetes (Large Scale)

Use Prometheus Operator with Helm:

kubectl create namespace monitoring

helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm install prometheus prometheus-community/kube-prometheus-stack \
  --namespace monitoring \
  --set prometheus.prometheusSpec.retention=30d

Deploy OpenTelemetry Collector and configure ServiceMonitor for metrics collection.

Access Grafana at http://<grafana-host>:3000 Navigate to Dashboards → Import

Configuring Services

Mobile App

Update frontend/.env:

EXPO_PUBLIC_OTEL_ENABLED=true
EXPO_PUBLIC_OTEL_COLLECTOR_URL=http://<otel-collector-host>:4318

# Service metadata

EXPO_PUBLIC_OTEL_SERVICE_NAME=superapp-mobile
EXPO_PUBLIC_OTEL_SERVICE_VERSION=1.0.0

EXPO_PUBLIC_OTEL_API_KEY=your-api-key-here

# Export interval in milliseconds
# Development: 10000 (10s for fast feedback)
# Production: 60000-300000 (1-5 minutes to save battery/data)

EXPO_PUBLIC_OTEL_EXPORT_INTERVAL=10000

# Sample rate (0.0 to 1.0)
# Development: 1.0 (100% of users)
# Production start: 1.0 (100% of users)
# Production at scale: 0.1-0.5 (10-50% to reduce costs)

EXPO_PUBLIC_OTEL_SAMPLE_RATE=1.0

Troubleshooting

Metrics Not Appearing

Check OTel Collector logs:

docker logs otel-collector

Verify endpoint connectivity:

curl http://otel-collector:4318/v1/metrics

Grafana Not Showing Data

Check Prometheus data source: 1. Navigate to Configuration → Data Sources 2. Test connection to Prometheus 3. Verify URL: http://prometheus:9090

High Memory Usage

Reduce retention:

--storage.tsdb.retention.time=15d

Increase resources:

deploy:
  resources:
    limits:
      memory: 4G

Security Considerations

1. Authentication

Enable Grafana authentication:

GF_AUTH_BASIC_ENABLED=true
GF_AUTH_ANONYMOUS_ENABLED=false

2. Network Security

Use firewall rules:

# Allow only internal network
iptables -A INPUT -p tcp --dport 9090 -s 10.0.0.0/8 -j ACCEPT
iptables -A INPUT -p tcp --dport 9090 -j DROP

3. TLS/SSL

Configure Grafana with TLS:

GF_SERVER_PROTOCOL=https
GF_SERVER_CERT_FILE=/etc/grafana/ssl/cert.pem
GF_SERVER_CERT_KEY=/etc/grafana/ssl/key.pem
